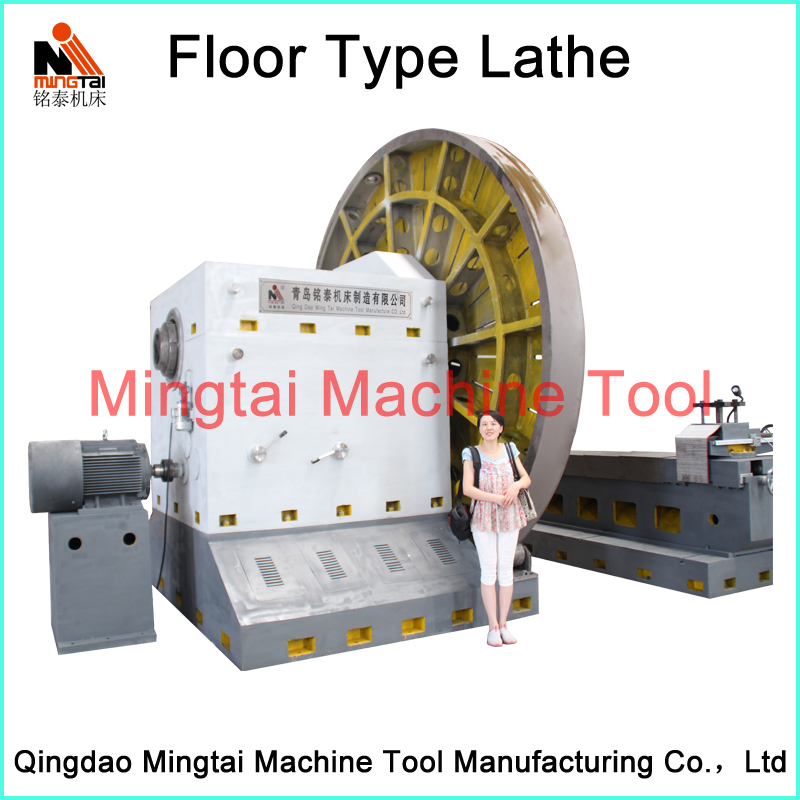

Standard Large Floor Type Lathe

CW6016 CW6020 CW6025 CW6030 CW6050

CW6050

lathe machine series are mainly used for turning not only the end face, ex-circle surface, but also the conical surface of various work-pieces. This machine adopts three supporting structure with good rigidity. Designing flexible lateral chip removal system with good performance. This machine is equipped with separate oil pump with excellent lubrication.Besides, this lathe has the functions of fast movement and terminal insurance with reasonable design for rotation speeds, feed rate and power. It can realize both rough and finish machinings. The machine tool has the characteristics of strong rigidity, high efficiency, energy saving, safety and reliability, convenient operation and beautiful appearance.

National Serving Advisory Hotline: 0532-83205777/5888

Machine parameter

Customer’s Use Case

Contact Mingtai

Specifications Table of CW60 series Standard Large Horizontal Lathe

Name/Type	Unit/Symbol	CW6016	CW6018	CW6020	CW6025	CW6030
			Basic Datas
Manuturing Brand		Mingtai	Mingtai	Mingtai	Mingtai	Mingtai
Swing Diameter over machine bed( G*2)	mm	φ1600mm	φ1800mm	φ2000mm	φ2500mm	φ3000mm
Chuck Diameter A	mm	φ1250mm	φ14000mm	φ1600m	φ2000mm	φ2500mm
Length of Chuck Jaw Seat G	mm	400mm	400mm	500m	500mm	500mm
Max.Work-piece Length B	mm	500mm	500mm	500mm	750mm	1000mm
Load Bearing Capacity	T	2T	2T	3T	3T	3T
Spindle Diameter	mm	190mm	190mm	190mm	220mm	260mm
Spindle Diameter	gear shifts	6 gear shifts	6 gear shifts	6 gear shifts	3 gear shifts	3 gear shifts
Spindle Speeds	r/min	14~108r/min	14~108r/min	13~86r/min	4~106r/min	4~106r/min
X Axis Stroke (C)	mm	800mm	900mm	1000mm	1250mm	1500mm
Z Axis Stroke (D)	mm	350mm	350mm	350mm	350mm	350mm
Rapid Feed of X Axis	mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min
Rapid Feed of Z Axis	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Size of Electrical Cutting Tool Carriage (E)	mm	300*300mm	300*300mm	300*300mm	300*300mm	300*300mm
Cutting Tool Holder Size (F)	mm	40*40mm	40*40mm	40*40mm	0*40mm4	40*40mm
Feed Numbers	gear shifts	20 gear shifts	20 gear shifts	20 gear shifts	20 gear shifts	20 gear shifts
			Motor Data
Main motor power	KW	11KW	11KW	15KW	18.5KW	22KW
Feed Motor Power	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Lubrication Motor Power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW
			Machine Accuracy Data
Cylindricity of Machine	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Cylindricity of Machine	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
		0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Machine Roughness	Ra	Ra3.2	Ra3.2	Ra3.2	Ra3.2	Ra3.2
Machine Dimensions LWH	mm	About 280018501800mm	About 280019501900mm	About 280020002000mm	About 325026502650mm	About 350033003200mm
Machine Weight	T	About 6T	About 6.5T	About 8T	About 12.5T	About 15T
