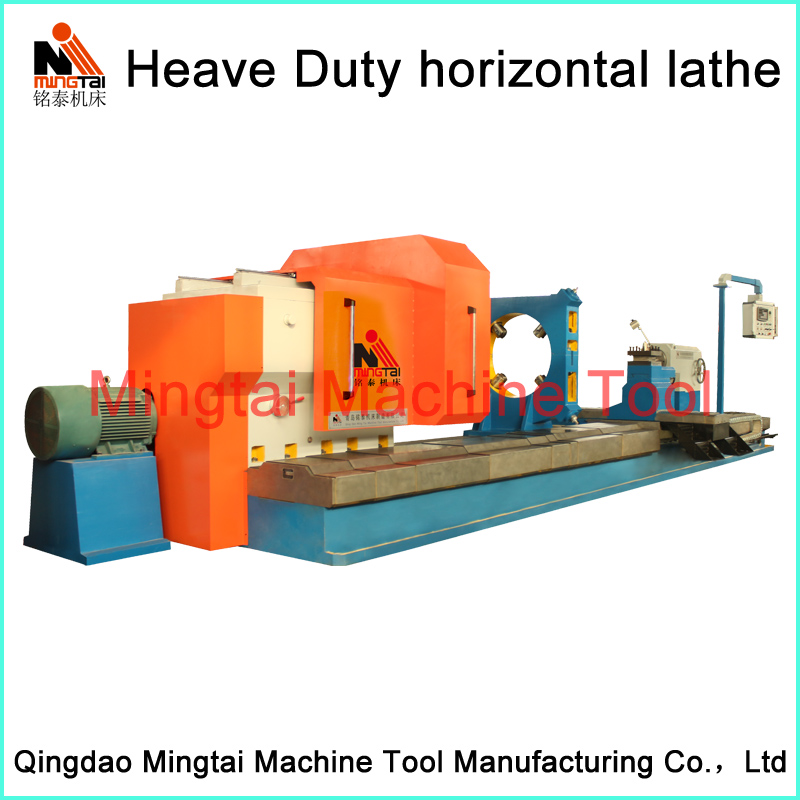

Heavy Duty Horizontal Lathe with PLC
CG61160
CG 61 series Heavy Duty Horizontal Lathe is maily used for turning not only the end face, ex-circle surface, inner hole, grooves of various work-pieces, but also strong cuttings for the ferrous and non-ferrous metals by the hard alloy cutter. Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design so that the machine can carry loads as heavy as possible. All castings are made of high-strength meehanite HT250. Therefore, the lathe has proved high rigidity, stability and precision maintenance, which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
National Serving Advisory Hotline: 0532-83205777/5888
Specifications Table of CK61 series Heavy Duty Horizontal CNC Lathe
Name/Type |
Unit/Symbol |
CK61160 |
CK61200 |
CK61250 |
CK61315 |
CK61400 |
CK61500 |
Basic Datas | |||||||
Manuturing Brand |
|
Mingtai |
Mingtai |
Mingtai |
Mingtai |
Mingtai |
Mingtai |
Guide Rail Type of Machine Bed |
|
Three Guide Rails with Rectangle Type. |
Three Guide Rails with Rectangle Type. |
Three Guide Rails with Rectangle Type. |
Three Guide Rails with Rectangle Type. |
Three Guide Rails with Rectangle Type. |
Three Guide Rails with Rectangle Type. |
Swing Diameter over machine bed( G*2) |
mm |
φ1600mm |
φ2000mm |
φ2500mm |
φ3150mm |
φ4000mm |
φ5000mm |
Swing Diameter over cutting tool carriage(K*2) |
mm |
φ1250mm |
φ1600mm |
φ2000mm |
φ2500mm |
φ3500mm |
φ4000mm |
Guide Rail Width |
mm |
1600mm |
1800mm |
2000mm |
2000mm |
2200mm |
2500mm |
Chuck Diameter A |
mm |
φ1250mm 4 jaws Independent Chuck |
φ1600mm 4 jaws Independent Chuck |
φ2000 4 jaws Independent Chuck |
φ2700mm 4 jaws Independent Chuck |
φ3000mm 4 jaws Independent Chuck |
φ4000mm 4 jaws Independent Chuck |
Length of Chuck Jaw Seat (H) |
mm |
250mm heavy duty chuck jaw seat |
320mm heavy duty chuck jaw seat |
320mm heavy duty chuck jaw seat |
320mm heavy duty chuck jaw seat |
320mm heavy duty chuck jaw seat |
320mm heavy duty chuck jaw seat |
Max.Work-piece Length (B) |
mm |
8000mm |
10000mm |
10000mm |
10000mm |
15000mm |
20000mm |
Load Bearing Capacity |
T |
20T |
25T |
32T |
40T |
50T |
63T |
Spindle Diameter |
mm |
φ260mm |
φ300mm |
φ300mm |
φ320mm |
φ360mm |
φ400mm |
Gear Shifts of Spindle |
gear shifts |
3 gear shifts |
3 gear shifts |
3 gear shifts |
3 gear shifts |
3 gear shifts |
6 gear shifts |
Spindle Speeds |
r/min |
5~165r/min |
2~165r/min |
1~92r/min |
1~92r/min |
1~60r/min |
0.5~80r/min |
Tips Specifications of Spindle |
|
Metric 120 1:7 |
Metric 120 1:7 |
Metric 120 1:7 |
Metric 120 1:7 |
Metric 160 1:7 |
Metric 160 1:7 |
X Axis Stroke (C) |
mm |
50-800mm |
100-1000mm |
100-1250mm |
150-1580mm |
200-2000mm |
200-2500mm |
Z Axis Stroke (D) |
mm |
2000-8000mm |
2000-10000mm |
2500-10000mm |
2500-10000mm |
3000-15000mm |
3000-20000mm |
Rapid Feed of X Axis |
mm/min |
2500mm/min |
2500mm/min |
2500mm/min |
2000mm/min |
2000mm/min |
2000mm/min |
Rapid Feed of Z Axis |
mm/min |
3000mm/min |
3000mm/min |
3000mm/min |
2500mm/min |
2500mm/min |
2500mm/min |
Cutting Tool Carriage Type |
|
300 Electrical Cutting Tool Carriage |
300 Electrical Cutting Tool Carriage |
300 Electrical Cutting Tool Carriage |
300 Electrical Cutting Tool Carriage |
300 Electrical Cutting Tool Carriage |
300 Electrical Cutting Tool Carriage |
Pressure Cutter Size |
mm |
60*60mm |
70*70mm |
70*70mm |
80*80mm |
80*80mm |
80*80mm |
Tailstock Spindle Diameter |
mm |
φ290mm |
φ290mm |
φ320mm |
φ320mm |
φ360mm |
φ410mm |
Tailstock Sleeve Stroke(J) |
mm |
300mm |
300mm |
300mm |
300mm |
300mm |
300mm |
Tailstock Movement Method |
|
Electrical Control |
Electrical Control |
Electrical Control |
Electrical Control |
Electrical Control |
Electrical Control |
Specifications of Tailstock Tips |
|
Metric 120 1:7 |
Metric 120 1:7 |
Metric 120 1:7 |
Metric 120 1:7 |
Metric 120 1:7 |
Metric 160 1:7 |
Max.Cutting Force of Single Cutting Tool Holder |
KN |
60KN |
80KN |
80KN |
80KN |
100KN |
150KN |
Max.Cutting Force of Chuck |
KN/m |
25KN/m |
35KN/m |
43KN/m |
55KN/m |
90KN/m |
233KN/m |
Total Cutting Force |
KN |
65KN |
90KN |
110KN |
120KN |
160KN |
210KN |
CNC Control System |
|
SIEMENS 828 D System |
SIEMENS 828 D System |
SIEMENS 828 D System |
SIEMENS 828 D System |
SIEMENS 828 D System |
SIEMENS 828 D System |
Motor Data | |||||||
Main motor power (DC) |
KW |
45KW(According to the Work-piece with 5000 mm length ) |
55KW(According to the Work-piece with 5000 mm length ) |
75KW(According to the Work-piece with 5000 mm length ) |
75KW(According to the Work-piece with 5000 mm length ) |
90KW(According to the Work-piece with 5000 mm length ) |
128KW(According to the Work-piece with 5000 mm length ) |
Lubrication Motor Power |
KW |
0.37KW |
0.55KW |
0.55KW |
0.55KW |
0.55KW |
0.55KW |
|
|
|
|
Machine Accuracy Data |
|
|
|
Cylindricity of Machine |
mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
Machine Flatness |
mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
0.03/300mm |
Machine Roughness |
Ra |
Ra3.2 |
Ra3.2 |
Ra3.2 |
Ra3.2 |
Ra3.2 |
Ra3.2 |
Machine DimensionsL*W*H |
mm |
About 9200*2650*2300mm |
About 9600*3200*2600mm |
About 10000*3600*2800mm |
About 11000*4000*3700mm |
About 11200*5000*4700mm |
About 11500*5500*5150mm |
Machine Weight |
T |
About 30T |
About 35T |
About 45T |
About 50T |
About 55T |
About 65T |
